NX-A2AE Series |
CFexpress™4.0 Type A MemoryCard VPG400
2000 GB / 1000 GB / 500 GB
Advanced Edition with specifications essential for video production
The NX-A2AE series is a CFexpress Type A memory card that uses TLC NAND Flash Memory and is compatible with CFexpress4.0.
It has high capacity and is compliant with VPG400, supporting stable long time video recording.
VPG400 COMPLIANT AND STABLE HIGH BIT RATE VIDEO RECORDING
The NX-A2AE series, compliant with VPG400, which guarantees a minimum sustained write speed of 400 MB/s, enables stable recording with minimal frame drops in high bit rate video recording, such as 8K and RAW quality.
HIGH-CAPACITY LINEUP
The lineup offers high capacity of up to 2,000 GB to cover even long shoots. It is ideal for professionals and advanced amateurs involved in large-scale projects who require both capacity and performance.
HIGH-SPEED PERFORMANCE MAKES
YOUR WORKFLOW MORE EFFICIENT

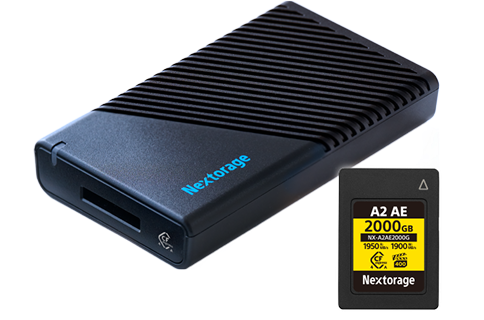

The NX-A2AE series offers the high-speed performance of CFexpress4.0 (maximum read speed: 1,950 MB/s1), enabling rapid data transfer in combination with the NX-SA1PRO USB 40Gbps-compatible card reader.
Even long video data can be transferred quickly, improving workflow efficiency.
DURABILITY TETED2
Exterior durability is tested in an environment compliant with CompactFlash Association regulations:
COMPATIBILITY
Nextorage is testing the operation in various recording modes with the latest high-end cameras. See below for the latest compatibility information:
Free Data Recovery Software Download
MEMORY CARD FILE RESCUE
This software recovers data that has been deleted by mistake or that cannot be read, as far as possible.
Does not support data recovery for content protected and game data files. Not all data may be recoverable.
5-YEAR LIMITED WARRANTY
Warranty and product support valid for 5 years from the purchase date
Model / Capacity*
NX-A2AE2000G / 2,000 GB
NX-A2AE1000G / 1,000 GB
NX-A2AE500G / 500 GB
* Capacity is based on 1 GB = 1 billion bytes. A portion of the memory is used for system files and may vary
Form Factor
CFexpress Type A
NAND Flash memory
pSLC
Max. speed (Read)1
1,950 MB/s
Max. speed (Write)1
NX-A2AE2000G: 1,900 MB/s
NX-A2AE1000G: 1,900 MB/s
NX-A2AE500G: 1,700 MB/s
Min. Sustained speed (Write)2
NX-A2AE2000G: 1,400 MB/s
NX-A2AE1000G: 1,400 MB/s
NX-A2AE500G: 1,200 MB/s
VPG
VPG800 1
VPG400
Storage temperature
-20 ℃ – 85 ℃
Operating temperature
-12 ℃ ～ 72 ℃
Dimensions (W×L×D)
Approx. 20.0 mm x 28.0 mm x 2.8 mm
Mass
Approx. 3 g
Included item
Media case
Warranty
5 years from the date of purchase
Temperature resistance
-12 ℃ – 72 ℃ (non-condensing)
Shock resistance
EIA-364-27A
X-ray resistance
ISO7816-1
The data will not be affected by X-ray baggage inspection at airports
UV resistance
ISO7816-1
Anti-magnetic
Tested
Electrostatic resistance
IEC61000-4-2
- Based on Nextorage test conditions. The actual performance may vary with host devices and environments.
- All durability ratings are based on Nextorage test conditions. No guarantee is made that memory cards will be damage-free or that data will remain intact under all circumstances
