NX-DF1CL | SDXC
USB 10Gbps
Dual Slot Card Reader
IMPROVES WORKFLOW EFFICIENCY
The NX-DF1CL is a card reader for SD memory cards that supports USB 10Gbps (USB 3.2 Gen 2). The dual slots allow two cards to be read simultaneously, improving workflow efficiency.
MAXIMIZES TRANSFER SPEED FOR
SIMULTANEOUS READOUT OF TWO CARDS
The NX-DF1CL maximizes memory card performance even when reading from two cards simultaneously.

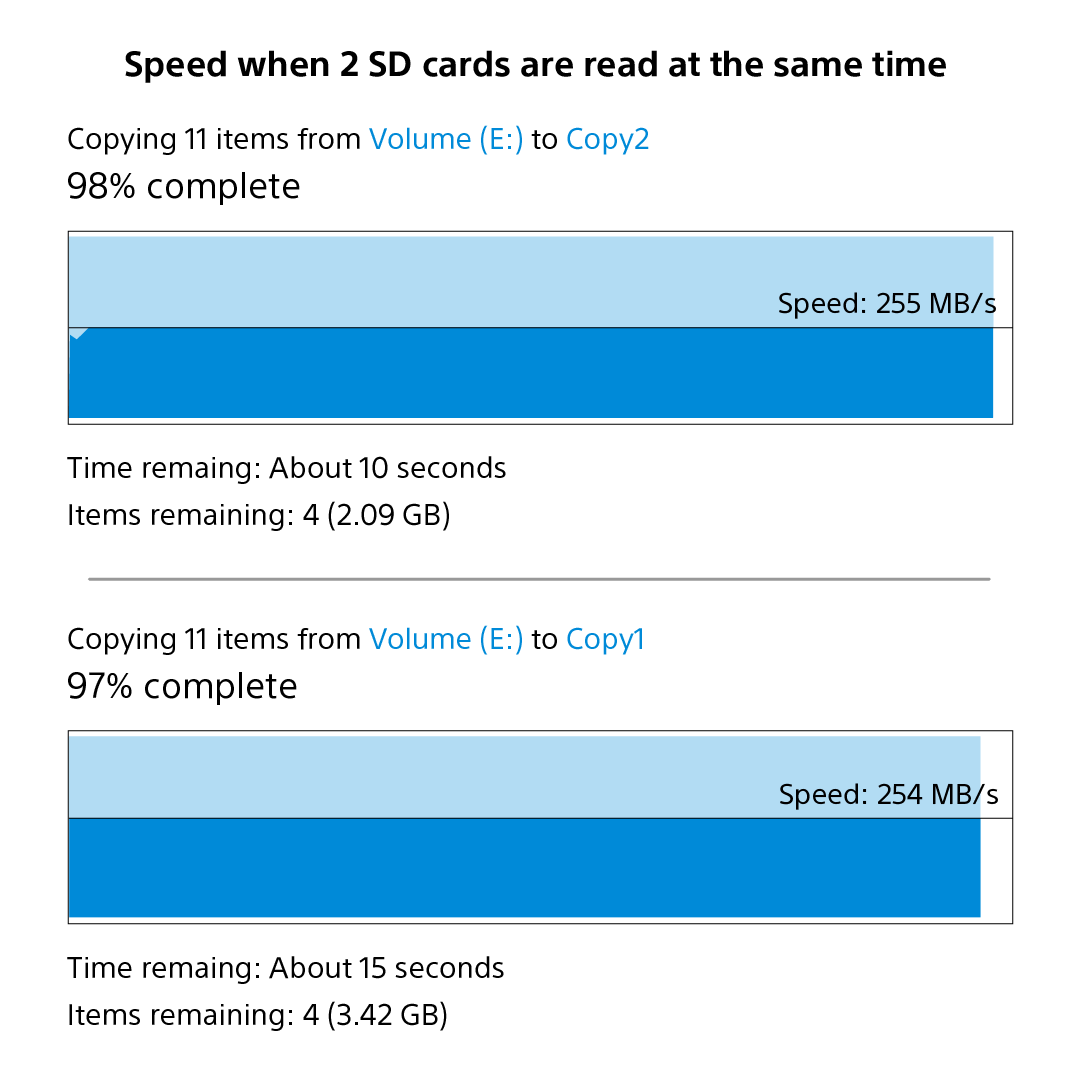

For example, when reading from two UHS-II SDXC memory cards, data can be read at a transfer rate almost equivalent to reading from a single memory card, thus reducing the time required to transfer large amounts of data.1
Test conditions

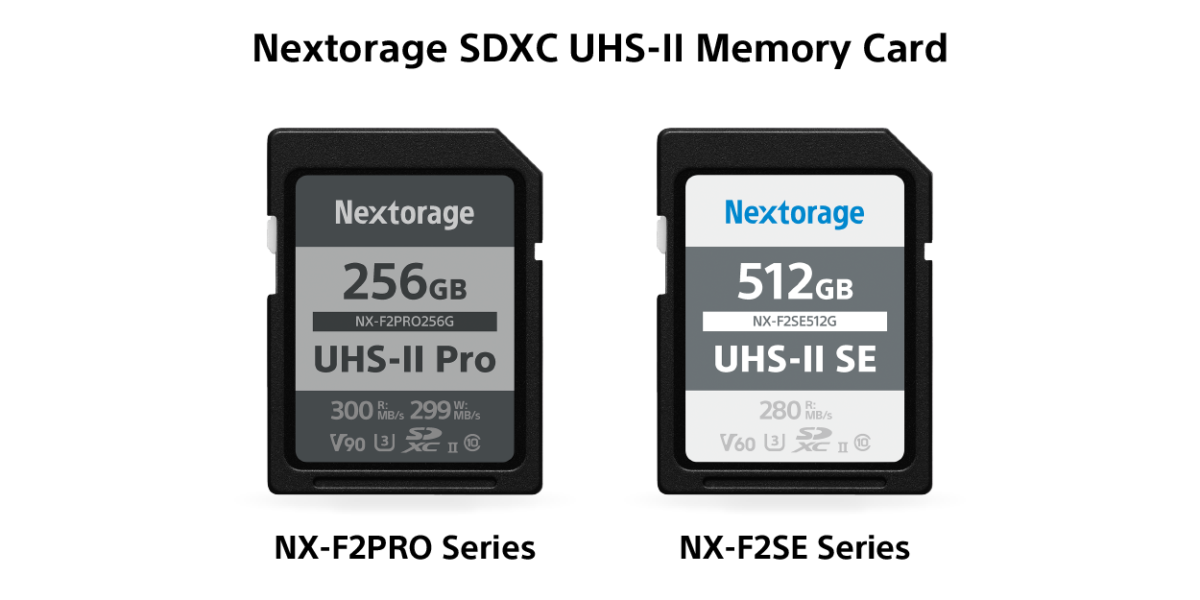

・Tested with two NX-F2PRO256G (UHS-II, max. read speed 300 MB/s)
・Copied 122 GB file size data from card to PC
WRITE-PROTECT SWITCH ON EACH SLOT
A configurable write-protect switch is installed in each of the two slots. It reduces the risk of accidentally erasing the data in the card, allowing for worry-free use.
HIGH-SPEED TRANSFER
ON A VARIETY OF DEVICES
The NX-DF1CL delivers fast transfer speeds of up to 10 Gbps (theoretical) and is compatible with SDXC UHS-II memory cards, allowing you to fully leverage the high-speed performance of UHS-II. This makes it ideal for efficiently handling large files like 4K videos and RAW images, enhancing your workflow.
Its lightweight, compact design is perfect for on-the-go use, making it an excellent choice for users who work with photos and videos on smartphones and tablets.
Compatibility
NX-DF1CL has been tested on PCs from various companies for use in a wide range of OS environments.
1-YEAR LIMITED WARRANTY
Warranty and product support valid for 1 years from the purchase date
Model
NX-DF1CL
Port type
USB Type-C®
Media type
SDXC memory card (including UHS-II)2
Interface
USB 10Gbps (USB3.2 Gen 2)
Power
USB bass power (no external power source)
Operating temperature
0 ℃ ~ 60 ℃
Storage temperature
-20 ℃ ~ 60 ℃
Dimension(W×L×D)
Approx. 59 mm × 80 mm × 15.5 mm
Mass
Approx. 41 g
Included items
USB 10Gbps (USB3.2 Gen 2) Type C – C cable
* Performance is not guaranteed if the included USB cable is not used.
* Paper instruction manual and warranty card are not included. Please download from the download page if necessary.
Warranty
1 year from the date of purchase
- Based on Nextorage test conditions. The actual performance may vary with host devices and environments.
- UHS-I SD cards and microSDXC memory cards with adapters are also supported.
Design and specifications are subject to change without notice.
SDXC logos are trademarks of SD-3C, LLC.
