NX-SA1PRO｜CFexpress™ 4.0 CFexpress Type A USB 40Gbps Card Reader
TAKE YOUR WORKFLOW EFFICIENCY TO THE NEXT LEVEL
The NX-SA1PRO is a CFexpress Type A dedicated card reader/writer with a USB 40 Gbps (USB4®) interface which standard transfer rate is 5,000 MB/s.
This next-generation standard enables fast and reliable transfer of large data files, dramatically enhancing your workflow environment.
MAXIMIZE THE PERFORMANCE OF CFexpress 4.0 Type A MEMORY CARDS
USB 40Gbps (maximum transfer rate: 5,000 MB/s) maximizes the high-speed transfer performance of CFexpress Type A memory cards compatible with CFexpress 4.0

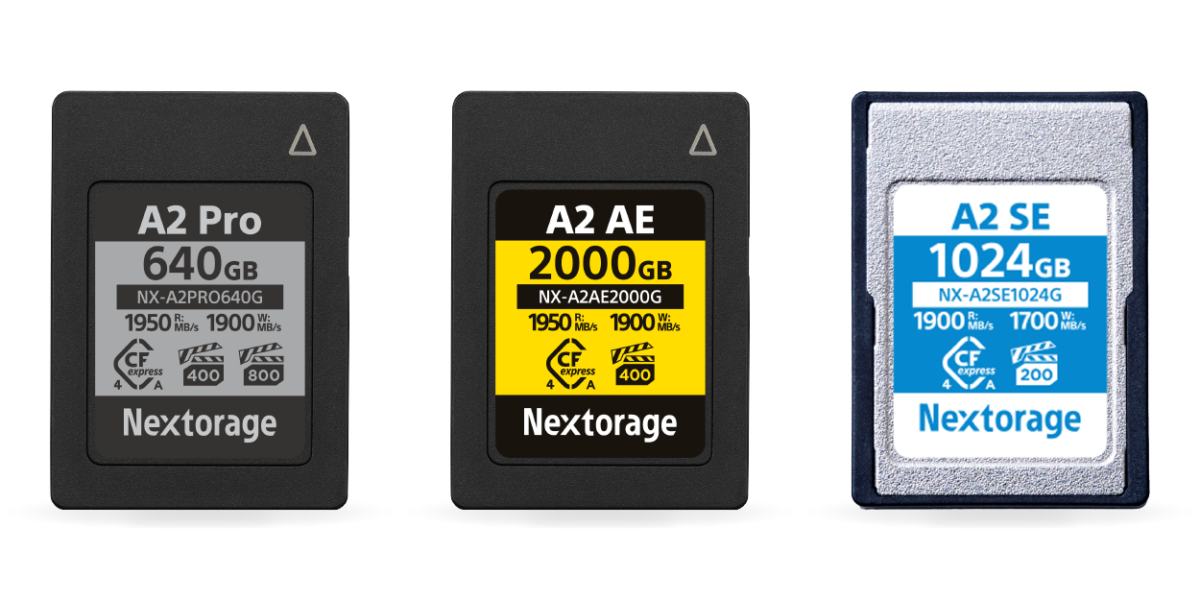

When you use NX-SA1PRO with the NX-A2SE series (max. read speed of 1,900 MB/s), it enables high-speed data transfer. This significantly reduces transfer times for large data files, streamlining your post-shoot workflow.
STABILIZE HIGH-SEPEED TRANSFER WITH LARGE UNIQUE HEAT SINK
To support the high-speed performance of CFexpress 4.0, we developed a large unique heat sink that enhances cooling efficiency inside the device.
This innovative design effectively suppresses the temperature rise of the card body and card reader under high-speed transfer standards such as CFexpress 4.0 and USB 40Gbps. Additionally, by minimizing the occurrence of thermal throttling*, high-speed and stable data transfer can be realized, significantly improving work efficiency.
* Thermal throttling: a control function that suppresses the transfer speed to prevent thermal runaway
Fully Compatible with Existing Devices
The newest USB 40Gbps (USB4) standard delivers high-speed transfers while maintaining compatibility with previous standards, enabling long-term use with a wide range of devices.
While taking advantage of the advanced features of USB 40Gbps, it can also work seamlessly with existing devices.
Compatibility
NX-SA1PRO has been tested on PCs from various companies for use in a wide range of OS environments.
1-YEAR LIMITED WARRANTY
Warranty and product support valid for 1 years from the purchase date
Model
NX-SA1PRO
Port type
USB Type-C®
Media type
CFexpress Type A
Intrerface
USB 40Gbps (USB4®)
Power
USB bus-powered (no external power source)
Max. speed (read)1
1,650 MB/s
Operating temperature range
0 ℃ ～ 70 ℃
Storage temperature range
-40 ℃ ～ 60 ℃
Mass
Approx. 110 g
Dimensions (W×L×D)
Approx. 59 mm × 100 mm × 17.2 mm
Warranty
1 year from the date of purchace
Included item
Type-C to C cable
* Performance is not guaranteed if the included USB cable is not used.
* Paper instruction manual and warranty card are not included. Please download from the download page if necessary.
Shock resistance
Drop tested height from 4.2 ft
Temperature resistance
0 ℃ to 70 ℃ (Operating)
- Based on Nextorage test conditions. The actual performance may vary with host devices and environments. Maximum performance represents the performance in NX-B3SE1024G.
- All durability ratings are based on Nextorage test conditions. No guarantee is made that memory cards will be damage-free or that data will remain intact under all circumstances.
Design and specifications are subject to change without notice.
